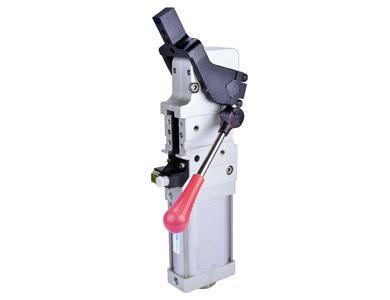

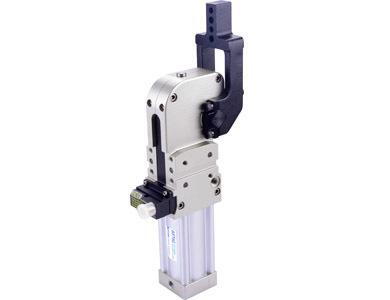

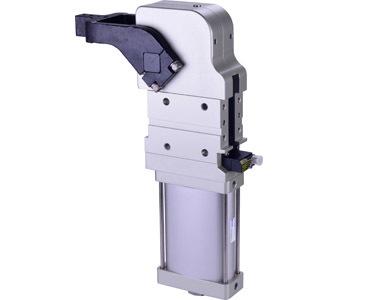

JCK Series Power clamp cylinder

1.  Rod-crank-slider structure made of high-strength, highly-wear-resisting material is adopted.
   a) Stable and reliable structure which can produce large clamping force at low working pressure.
   b) Self -lock mechanism is adopted at clamping position which can still provide clamping force even after compressed air is off.
2. 4 sides are to be mounted with dimensions subject to DIN standard.
3. Mechanism and cylinder designed as a whole.
4. Sensor fix adopts special design for convenient angle adjustment and reduction of welding spatter accumulation. Sensing system immune to interference providing steady and reliable signal.
5. Oval-shaped cylinder which is space efficient.
6. 4 Arm styles AM1, AM2, AM3 and AM4 each with 3 specifications R, C and L for uses in different situations.
7. Opening angle adjustment by changing adjusting screw is easy and convenient.
